20ft Two Storey Apple Cabin | Double Deck Prefab Modular Resort Villa
Two-storey Apple Cabin assembled from offset 20ft modular pods with panoramic glazing, sheltered ground-level area, rooftop terrace, guardrails and exterior stairs. Custom prefab villa for resorts, Airbnb, glamping and compact hospitality projects.
Tell us your required size, quantity and destination. Our export team will provide factory pricing, layout options and shipping guidance.

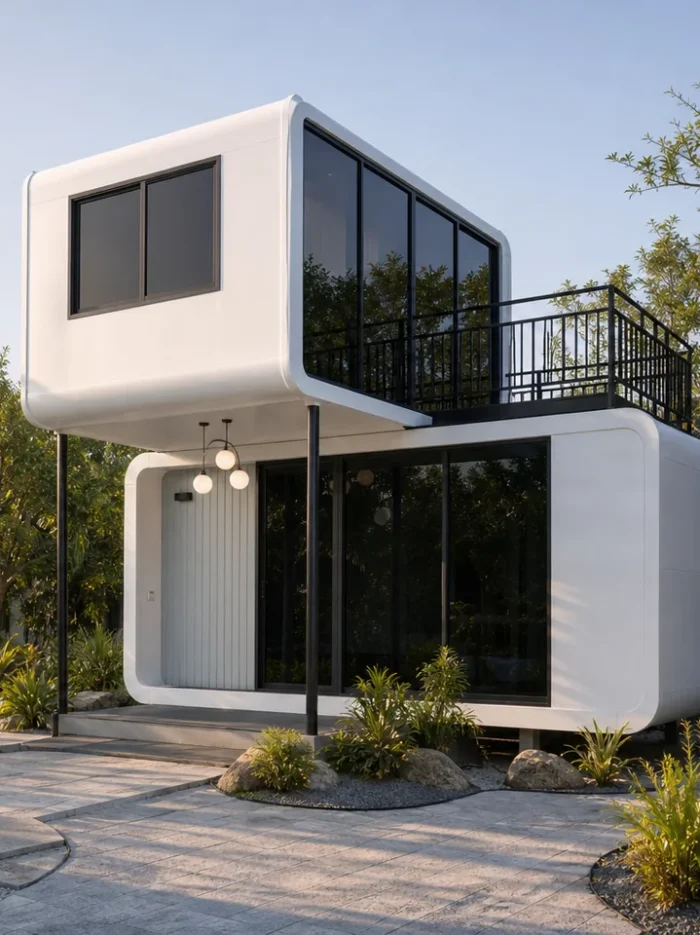

20ft Two Storey Apple Cabin Modular Villa
This 20ft two-storey Apple Cabin combines two rounded white modular pods in an offset stacked arrangement. The projecting upper module creates a sheltered ground-level entrance area, while the space between the modules becomes an elevated terrace connected by an exterior staircase.
Panoramic black-framed glazing gives both floors a modern hospitality appearance. The double-level configuration is suitable for boutique resorts, Airbnb villas, glamping projects, scenic homestays, compact holiday homes, reception buildings and modular hotel suites that need more usable space without a large site footprint.
20ft Module Size and Double-Storey Configuration
| Base module size | Each 20FT Apple Cabin module: 5800 × 2200 × 2450 mm |
|---|---|
| Building configuration | Two rounded 20ft modules arranged in an offset two-storey composition |
| Upper level | Cantilevered glazed pod with engineered steel support connection |
| Outdoor space | Intermediate rooftop terrace with black guardrails and exterior access stair |
| Overall installed dimensions | Confirmed by the approved structural arrangement, foundation, stair and terrace drawing |
| Typical use | Two-level resort villa, Airbnb house, glamping suite, hotel pod, holiday home or modular office |
Engineering note: The module size above is the standard factory unit dimension. Total building height, cantilever length, support columns, stair geometry, guardrails, anchoring and foundation must be confirmed for the destination site through an approved structural drawing and local engineering review.

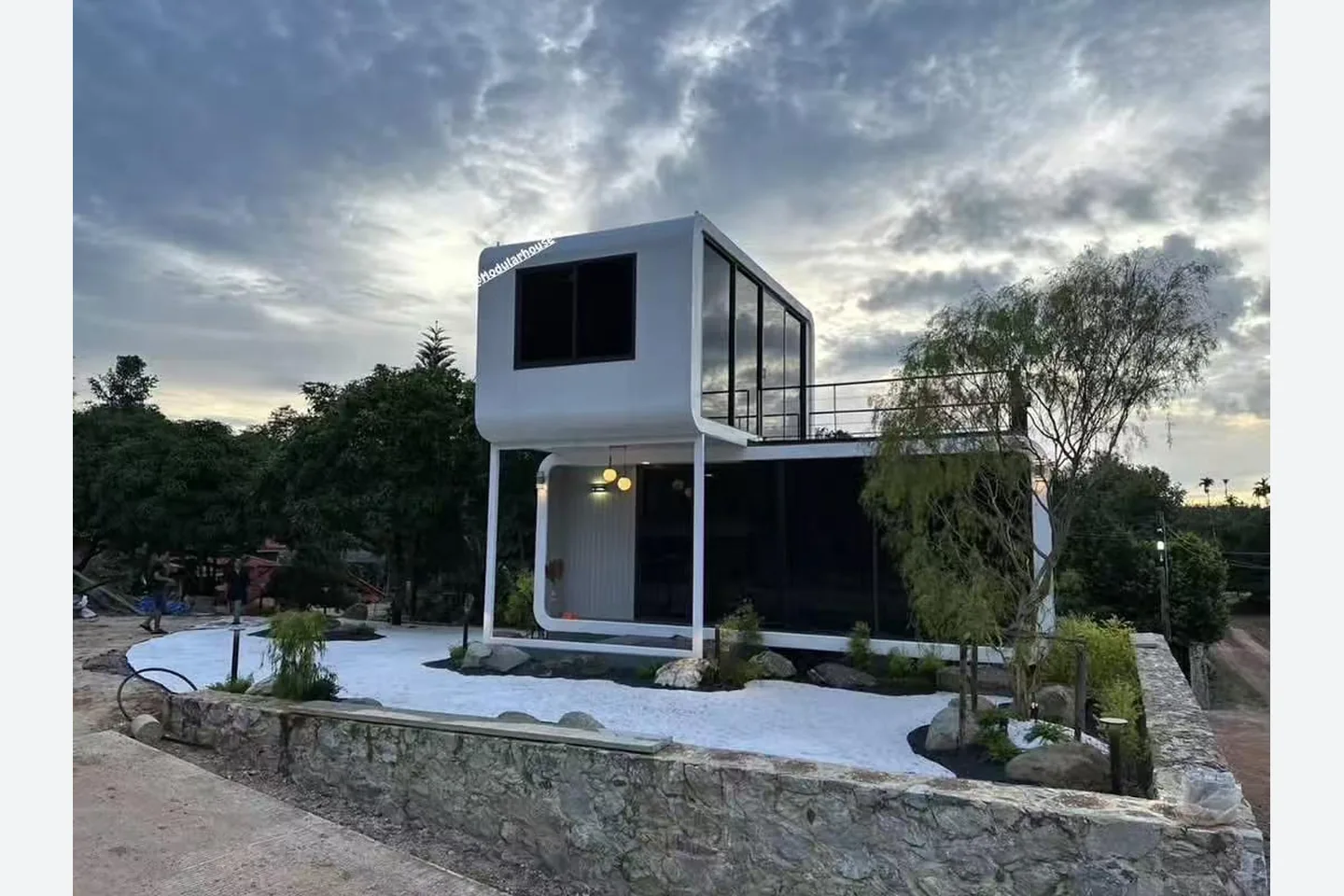

Offset Double-Deck Design with Rooftop Terrace
The offset upper pod increases visual impact and creates a protected outdoor zone below. The connecting deck can be used as a viewing terrace or circulation platform, with guardrails and stair location adjusted to the project layout.

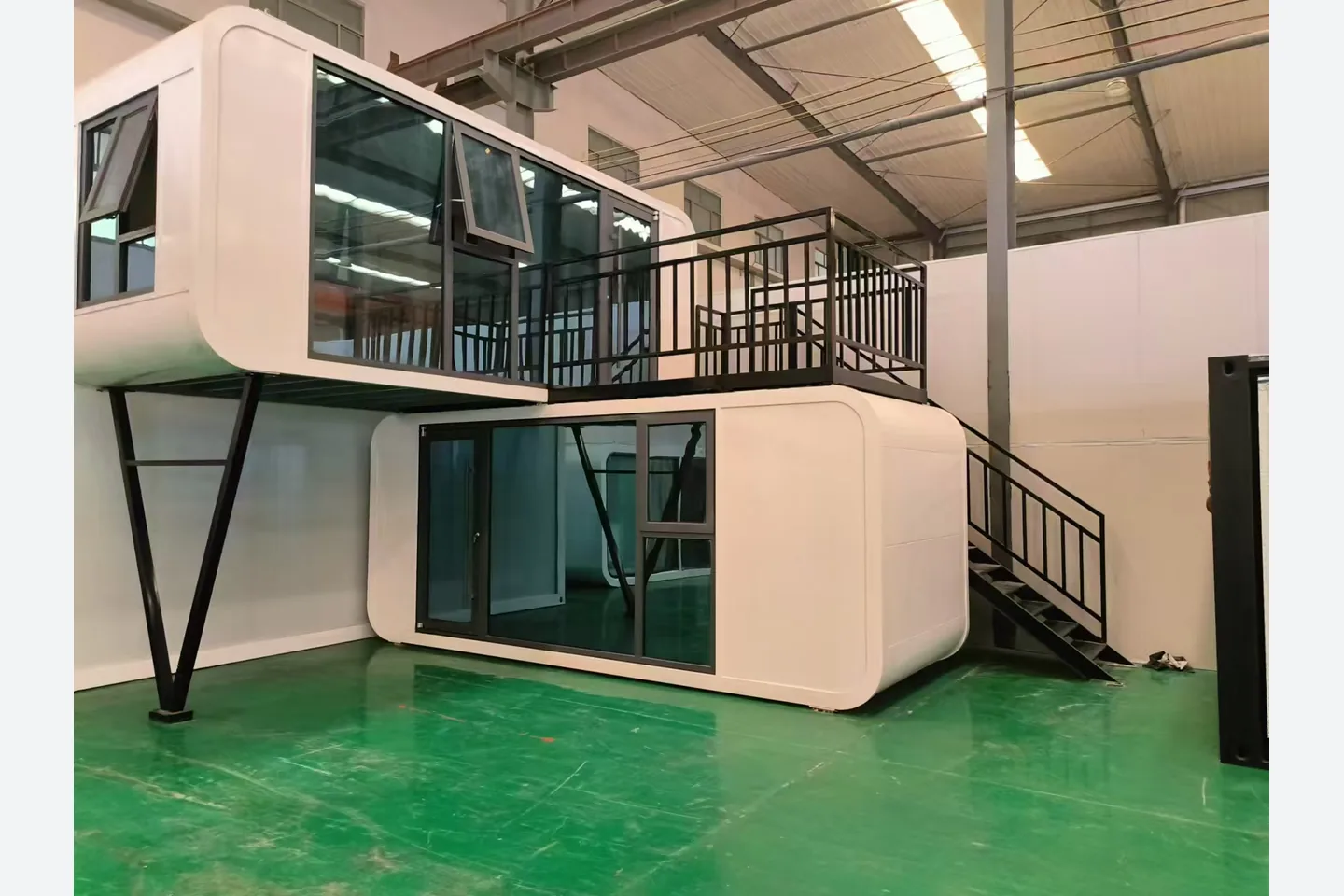

Factory-Built Steel Modular Structure
Both levels are manufactured as purpose-built steel Apple Cabin modules rather than converted used shipping containers. Factory production supports controlled framing, insulation, glazing, interior finishing and utility preparation before site installation.
Standard Module Construction
| Main frame | Q235 steel; galvanized square tubes 100 × 100 × 2.5 mm, 80 × 160 × 2.5 mm and 50 × 100 × 1.5 mm |
|---|---|
| Wall structure | 40 × 60 × 1.2 mm and 30 × 50 × 1.2 mm square tubes with corner bracing |
| Window / roof reinforcement | 40 × 80 × 1.5 mm window reinforcement; 50 × 100 × 1.5 mm roof reinforcement |
| Base frame | Transverse spacing not more than 400 mm; additional connection design according to the double-storey structural drawing |
| Floor system | 18 mm high-density cement pressure board plus 12 mm composite wood flooring and baseboard |
| Exterior finish | White galvanized metal panel exterior with rounded Apple Cabin profile; project finish customizable |
| Interior wall / ceiling | 8 mm stone-plastic panel with trim; inner roof leveled with timber |
| Roof and waterproofing | 0.8 mm corrugated steel outer roof, welded and sealed with weather-resistant adhesive and waterproof tape |
| Insulation | 50 mm foil-faced rock wool roll/felt, R 3.2 |
| Doors and windows | Thermal-break aluminum doors and windows with casement, sliding or top-hung options |
| Glass | 5 + 12 + 5 insulated tempered glass |
| Electrical | Leakage and circuit-breaker protection, 6 mm² main wiring, 16A outlets, switches and LED lighting; destination-standard adaptation available |

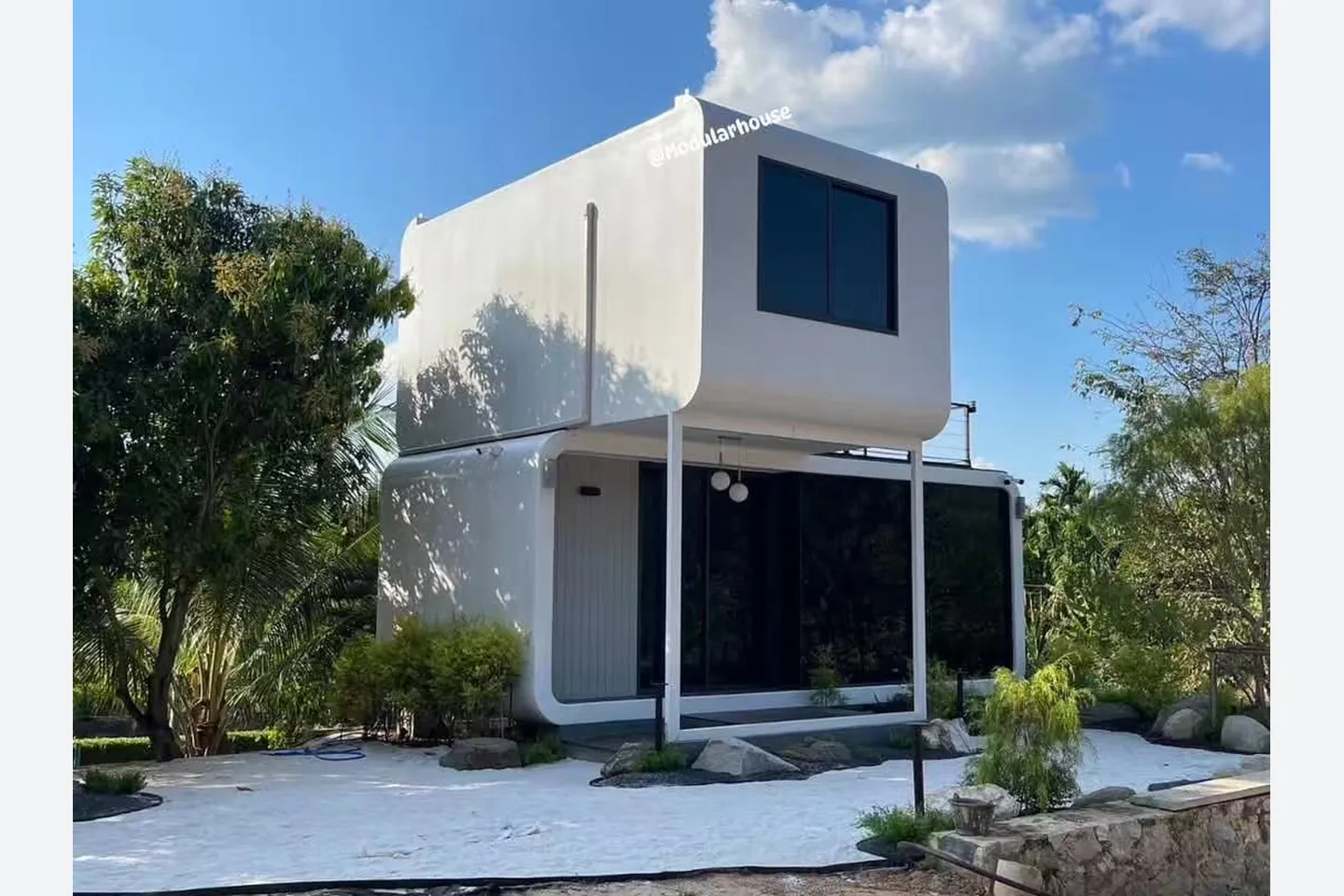

Installed Two-Level Apple Pod House
The completed structure presents a distinctive stacked-pod silhouette with broad glazing and usable outdoor circulation. Internal layouts can separate public and private areas between floors—for example, lounge and bathroom below with bedroom or viewing room above.

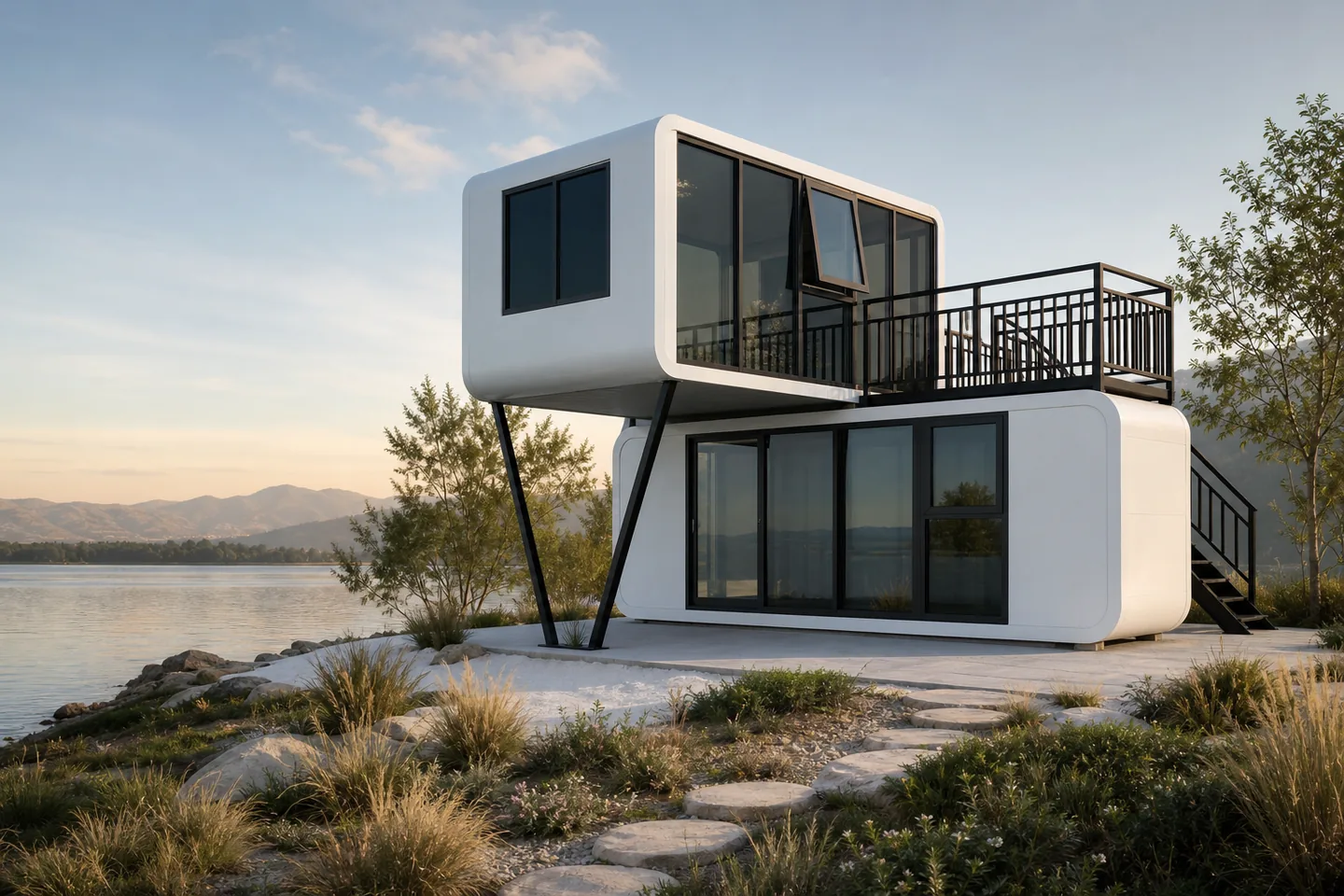

Lakeside Airbnb and Glamping Villa
The double-decker Apple Pod works well for scenic short-stay accommodation where the second floor and terrace can take advantage of lake, forest or valley views.

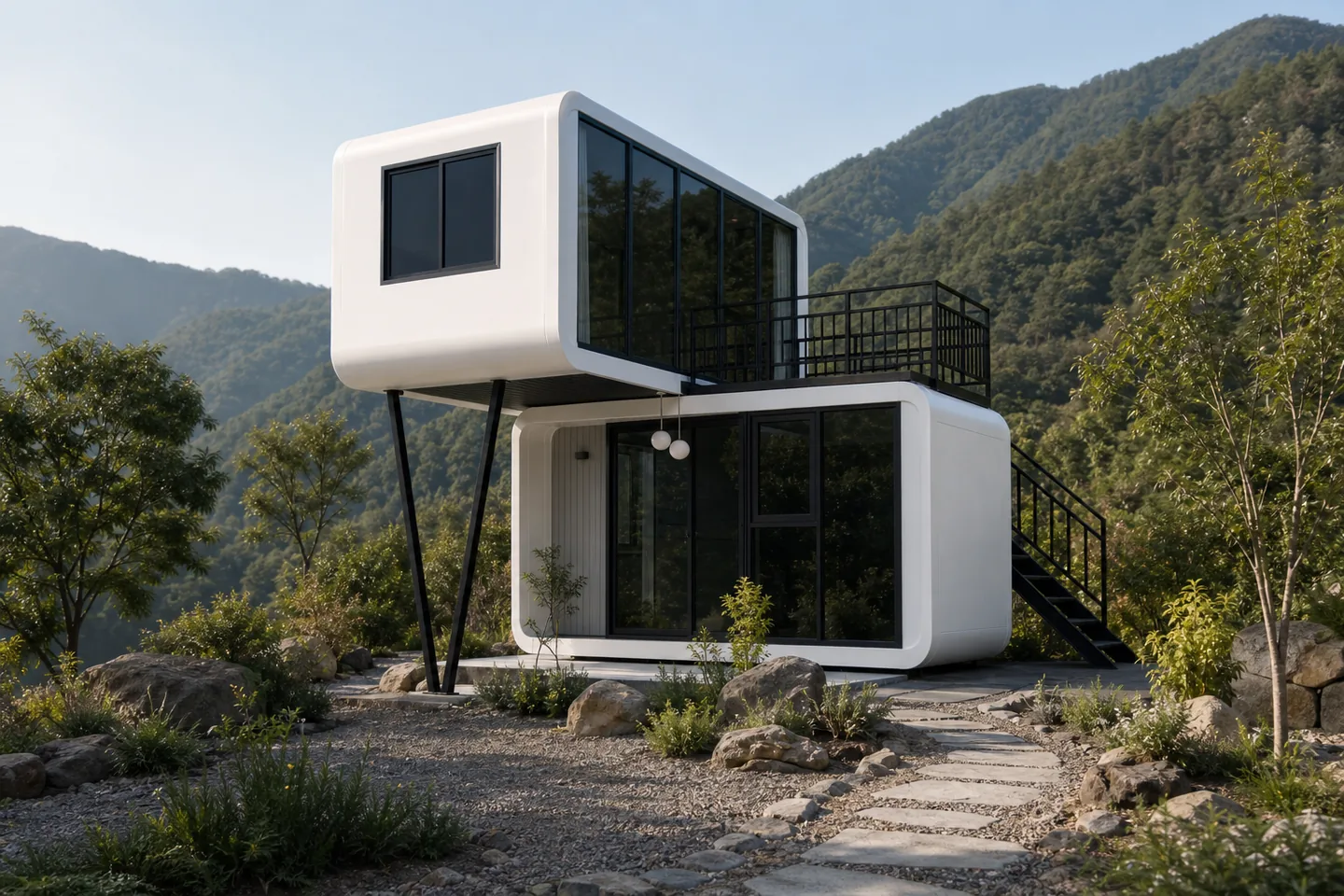

Mountain Resort and Boutique Homestay
For hillside resorts and countryside hotels, the compact modular footprint can reduce wet construction at the site. Foundation and wind, snow and seismic requirements must be evaluated for the local project.
Custom Layout and Project Options
- Bedroom, bathroom, kitchenette, living room or reception layout on each floor
- Upper-module direction and cantilever arrangement
- Terrace size, guardrail design and exterior stair position
- Galvanized exterior panel color and surface finish
- Panoramic glass, doors and opening-window configuration
- HVAC openings, plumbing, sanitary fixtures and electrical standard
- Interior cabinets, lighting, flooring and furniture package
- Foundation, anchoring and on-site assembly plan
Frequently Asked Questions
Is the total building height 2450 mm?
No. 2450 mm is the height of each standard 20ft module. The final overall height depends on the stacked structure, connecting deck, supports, foundation and approved engineering drawing.
Can both floors include bathrooms?
Yes. Plumbing and sanitary layouts can be prepared for one or both floors depending on the floor plan and destination requirements.
Can the upper pod direction be changed?
Yes. The arrangement can be customized, subject to structural verification, transport limits and site conditions.
What is required for an accurate quotation?
Please provide destination, quantity, intended use, preferred floor plans, local wind and snow conditions, electrical standard and required installation scope.
Request a Two-Storey Apple Cabin Proposal
Contact Zhengzhou Vision for concept layouts, factory pricing, structural coordination and worldwide shipping.
