20ft Dark Gray Apple Cabin | Panoramic Glass Prefab Pod
Factory-built 20ft dark gray Apple Cabin with a smooth rounded shell, black-framed panoramic glass entrance and compact side windows. Custom modular pod for resorts, glamping, Airbnb, offices and backyard guest accommodation.
Tell us your required size, quantity and destination. Our export team will provide factory pricing, layout options and shipping guidance.

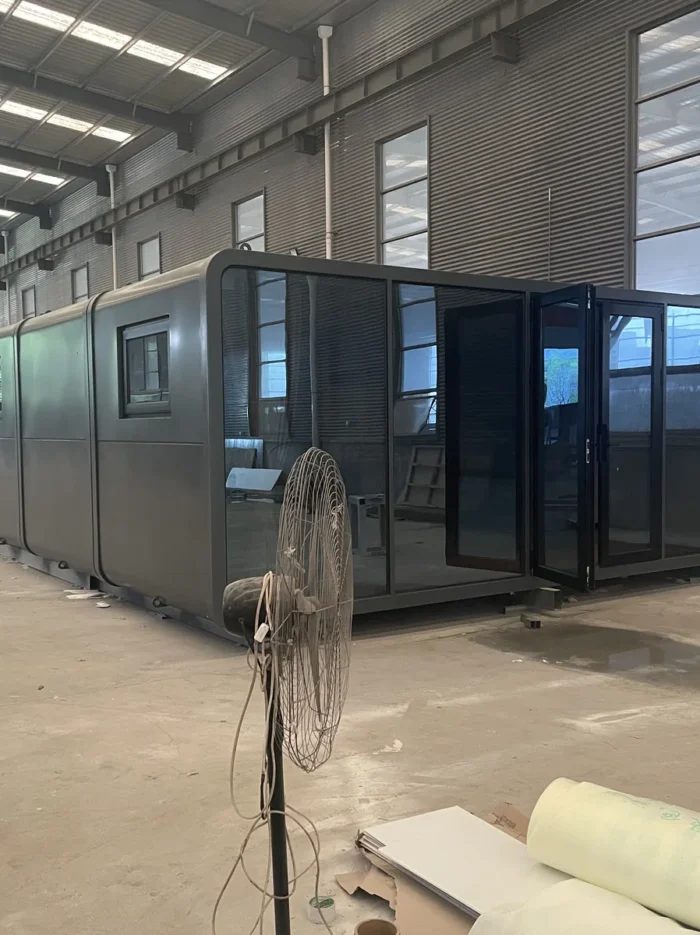

20ft Dark Gray Apple Cabin with Panoramic Glass
This 20ft dark gray Apple Cabin combines a smooth rounded modular shell with a black-framed panoramic glass entrance. The restrained dark exterior gives the prefab pod a contemporary architectural character for resorts, glamping sites, Airbnb accommodation, holiday parks, backyard guest rooms, garden offices and reception spaces.
The cabin body measures 5800 × 2200 × 2450 mm. The photos show the real unit during factory production. Interior layout, bathroom, kitchenette, electrical system, doors, windows and finishes can be configured after the project requirements are confirmed.
Model Dimensions and Recommended Uses
| Model | 20FT Dark Gray Apple Cabin / Prefab Apple Pod |
|---|---|
| Overall size | 5800 × 2200 × 2450 mm |
| Exterior appearance | Smooth dark gray rounded shell with black-framed panoramic glass entrance |
| Visible windows | Compact black-framed side windows; final opening style customizable |
| Typical uses | Resort cabin, glamping pod, Airbnb tiny home, backyard guest room, garden office, reception room or sales space |
| Interior layout | Custom bedroom, bathroom, kitchenette, lounge, office or commercial configuration |

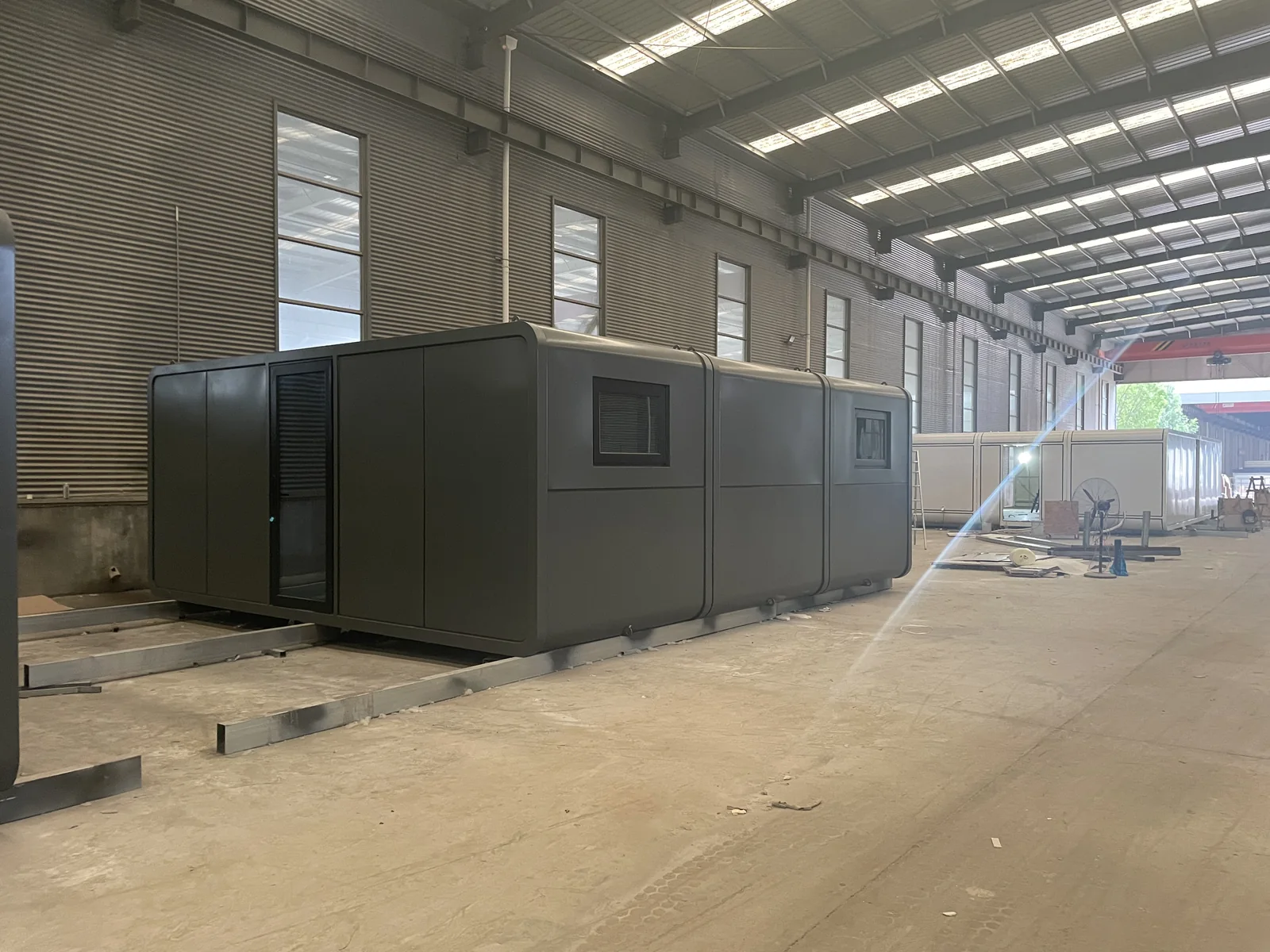

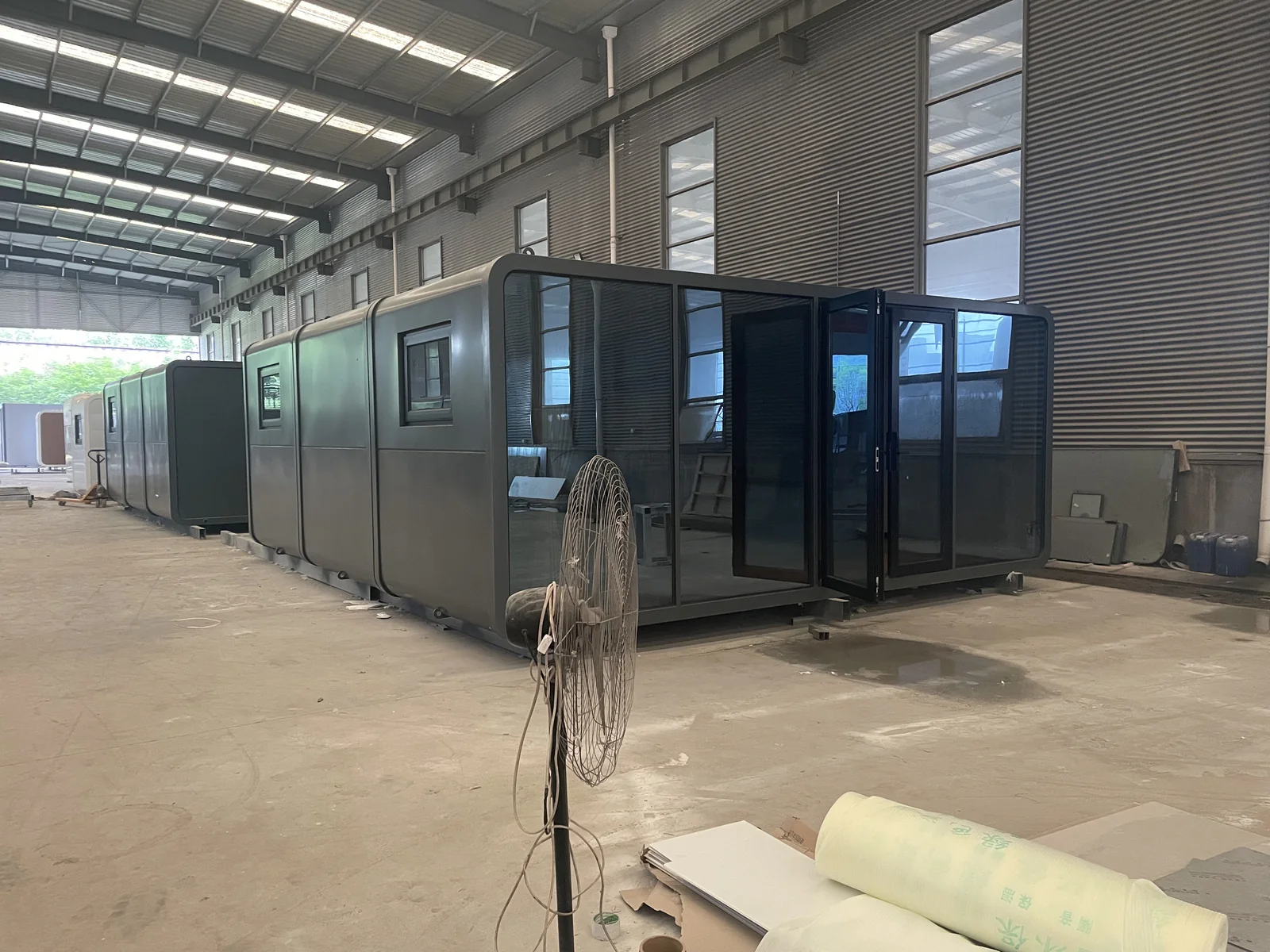

Real Factory Production
These production photos show the actual modular shell, curved end sections, side-wall joints, window positions and glass-fronted entrance. The cabin is purpose-built as a modular building rather than converted from a shipping container.

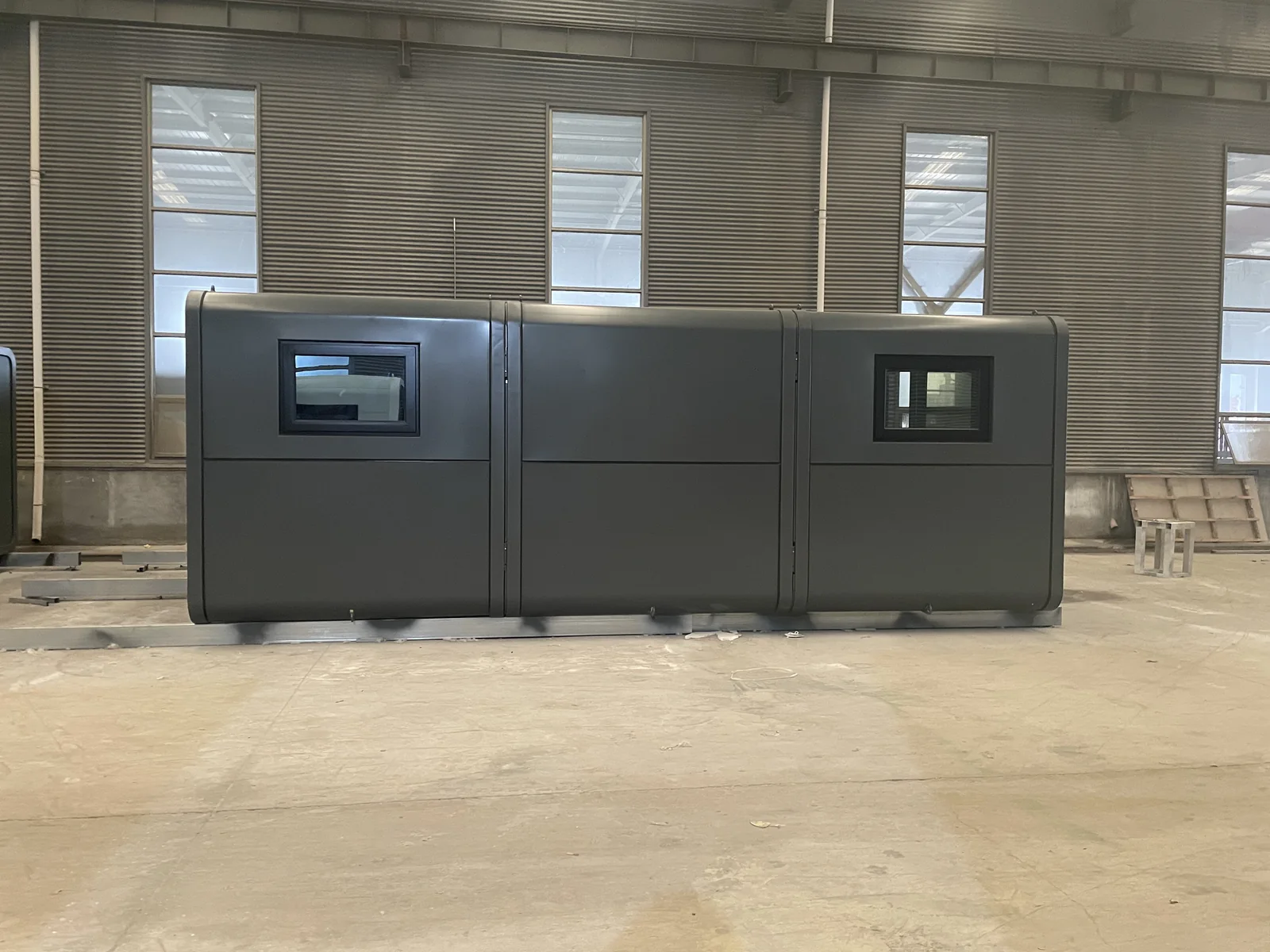

Compact Side Windows and Rounded Modular Shell
The long elevation uses compact windows to balance privacy, daylight and ventilation. Smooth dark gray panels and rounded corners create a clean profile that can work in natural landscapes as well as modern commercial settings.
Standard Construction Specification
| Main frame | Q235 steel; galvanized square tubes 100 × 100 × 2.5 mm, 80 × 160 × 2.5 mm and 50 × 100 × 1.5 mm |
|---|---|
| Wall structure | 40 × 60 × 1.2 mm and 30 × 50 × 1.2 mm square tubes with corner-column diagonal bracing |
| Window / roof reinforcement | 40 × 80 × 1.5 mm window reinforcement; 50 × 100 × 1.5 mm roof reinforcement |
| Base and curved frame | Base transverse spacing no more than 400 mm; semicircular curved elbow 100 × 100 × 2.5 mm |
| Floor system | 18 mm high-density cement pressure board plus 12 mm composite wood flooring and baseboard |
| Exterior / interior walls | 18 mm exterior metal carved panel; 8 mm stone-plastic interior panel with adhesive and corner trim |
| Roof | 0.8 mm corrugated steel outer roof, fully welded and sealed; 8 mm stone-plastic inner roof with timber leveling |
| Insulation | 50 mm foil-faced rock wool, R 3.2 |
| Doors and windows | Thermal-break aluminum door and window system; opening configuration customizable |
| Glass | 5 + 12 + 5 insulated tempered glass |
| Electrical | Leakage and circuit-breaker protection, 6 mm² main wiring, 16A outlets, switches and LED lighting; destination-standard adaptation available |
Applications
Resort, Glamping and Airbnb Accommodation
The dark architectural finish and panoramic entrance make this Apple Pod suitable for scenic resorts, eco-camps, holiday parks and short-stay rental projects. A bedroom, bathroom and compact kitchenette can be planned as one coordinated factory package.
Backyard Guest House and Garden Studio
The 20ft footprint can be configured as a private guest suite, garden office, poolside room or hobby studio, subject to local site and permit requirements.
Office, Reception and Commercial Space
For business use, the cabin can become a reception room, sales office, ticket booth, security room, small showroom or branded service space.
Customization Options
- Bedroom, bathroom, kitchenette, lounge or office floor plan
- Exterior color and panel finish
- Panoramic glass, entrance and opening-window arrangement
- Interior wall, ceiling and flooring materials
- Bathroom fixtures, cabinets, lighting and furniture
- HVAC openings, plumbing and destination-standard electrical system
- 20FT, 30FT and 40FT Apple Cabin project options
Frequently Asked Questions
Is this converted from a shipping container?
No. It is a purpose-built Q235 steel modular Apple Cabin with a rounded insulated shell and architectural glazing.
Can a bathroom and kitchenette be included?
Yes. Plumbing, sanitary fixtures, cabinets, electrical points and furniture can be prepared according to the approved floor plan.
Can the exterior color and glass layout be changed?
Yes. Exterior finish, window type, entrance position and interior package can be customized before production.
What is needed for a quotation?
Please provide quantity, destination port, intended use, preferred floor plan, electrical standard and required interior package.
Request 20ft Dark Gray Apple Cabin Pricing
Contact Zhengzhou Vision International Trading Co., Ltd. for drawings, customization options, factory pricing and worldwide shipping support.
