20ft Panoramic Glass Apple Cabin | Modular Space Capsule Pod
Factory-built 20FT Apple Cabin with a rounded white shell, black accent trim and curved panoramic glass facade. A customizable modular space capsule pod for resorts, glamping, guest rooms, offices, showrooms and reception spaces.
Tell us your required size, quantity and destination. Our export team will provide factory pricing, layout options and shipping guidance.

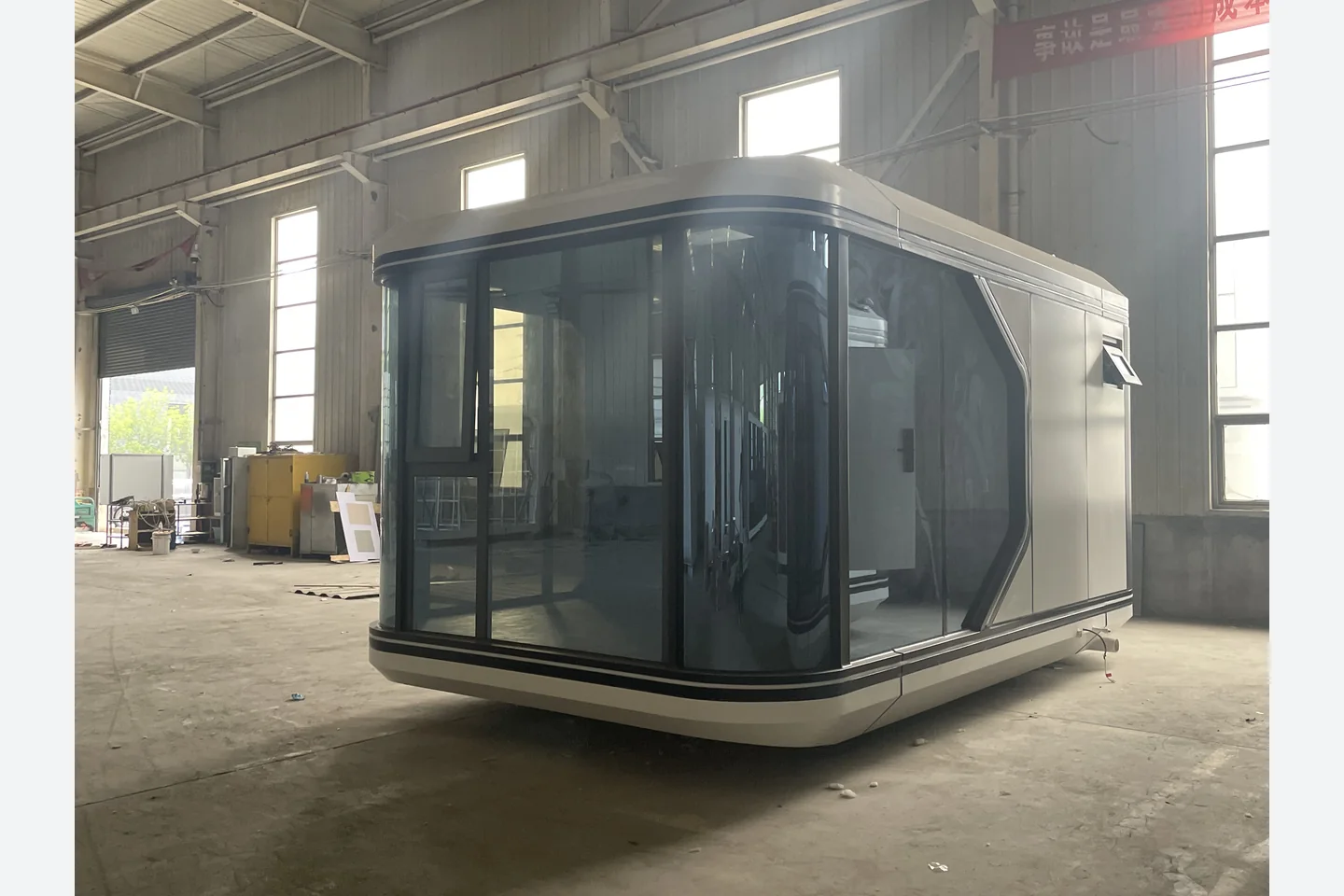

20ft Panoramic Glass Apple Cabin
This 20ft panoramic glass Apple Cabin combines a rounded white shell, contrasting black exterior lines and a wide curved glass facade. The compact factory-built pod creates a modern architectural focal point for resorts, glamping parks, scenic destinations, backyard guest rooms, offices, showrooms and reception spaces.
The standard overall size is 5800 x 2200 x 2450 mm. Interior layout, bathroom, kitchenette, furniture, lighting and destination-standard electrical systems can be configured after the project requirements are confirmed.
Model Overview
| Model | 20FT Panoramic Glass Apple Cabin / Space Capsule Pod |
|---|---|
| Overall size | 5800 x 2200 x 2450 mm |
| Exterior style | Rounded white shell, black accent trim and curved panoramic glazing |
| Typical applications | Resort room, glamping pod, guest cabin, garden studio, office, reception room, showroom or retail space |
| Interior layout | Custom bedroom, bathroom, kitchenette, lounge, office or commercial layout |

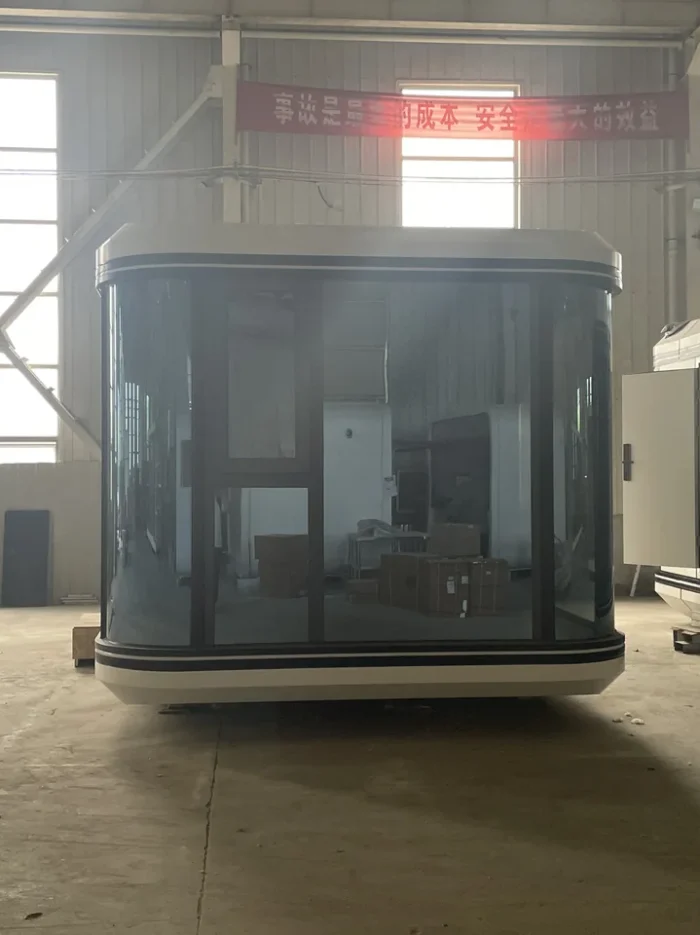

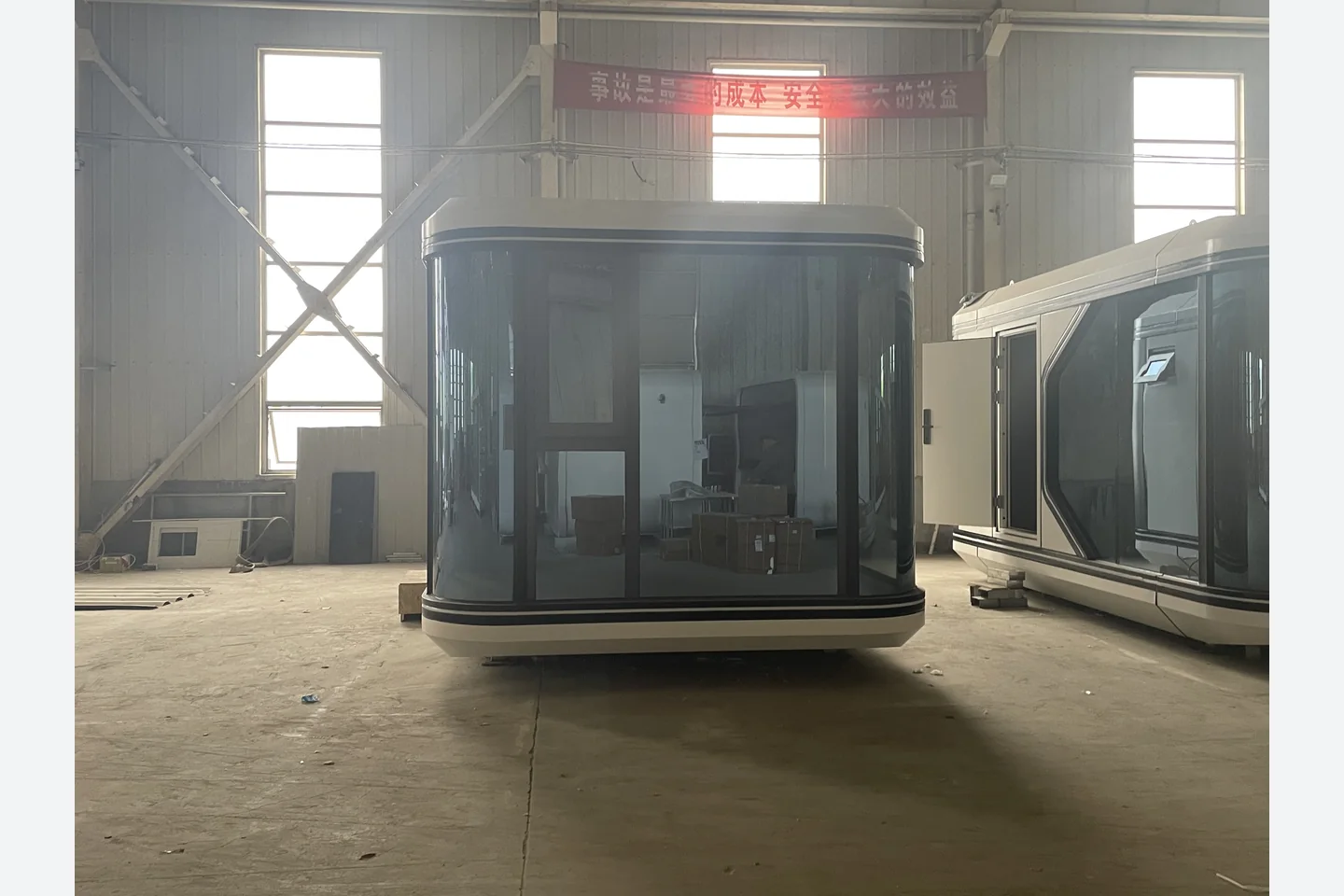

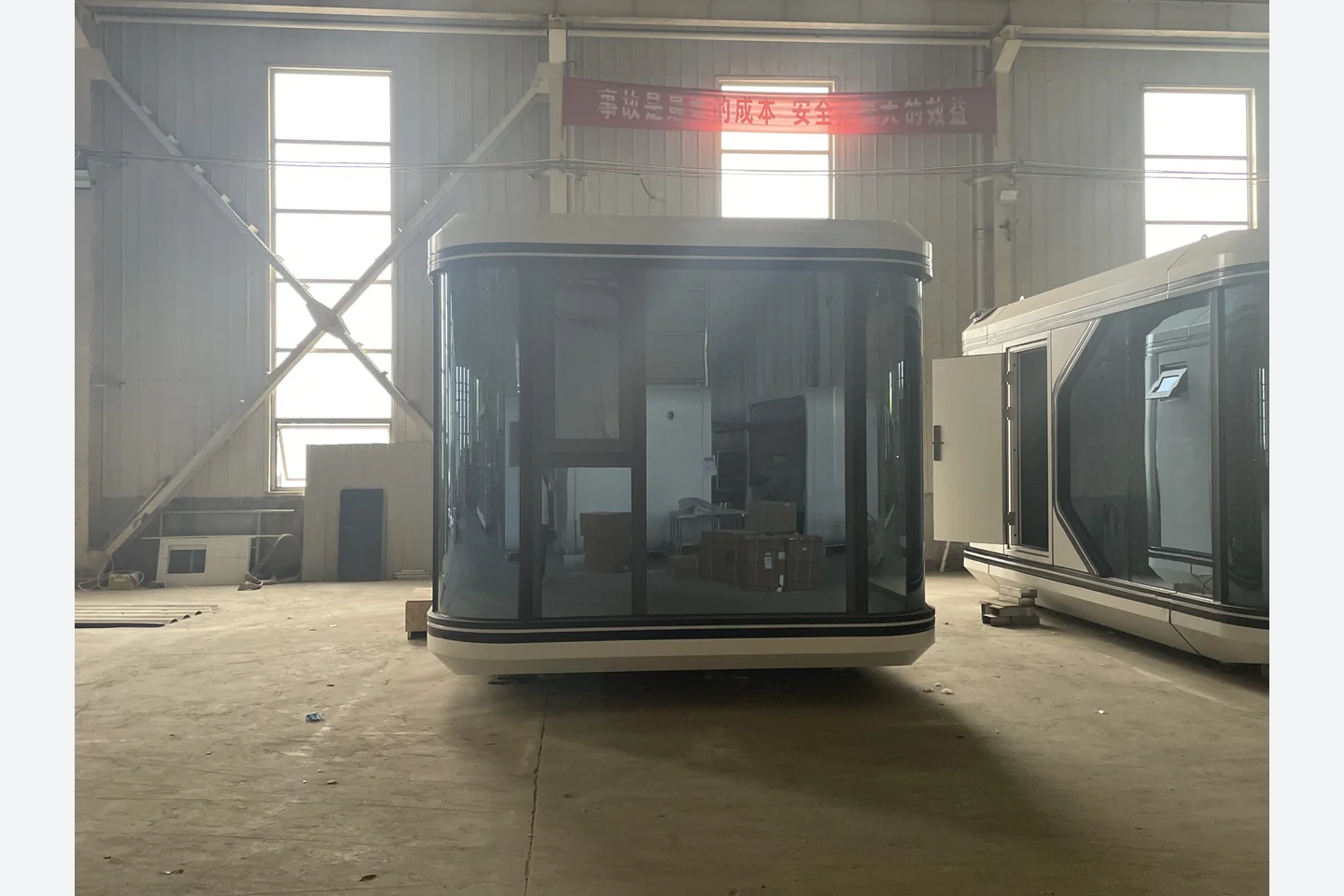

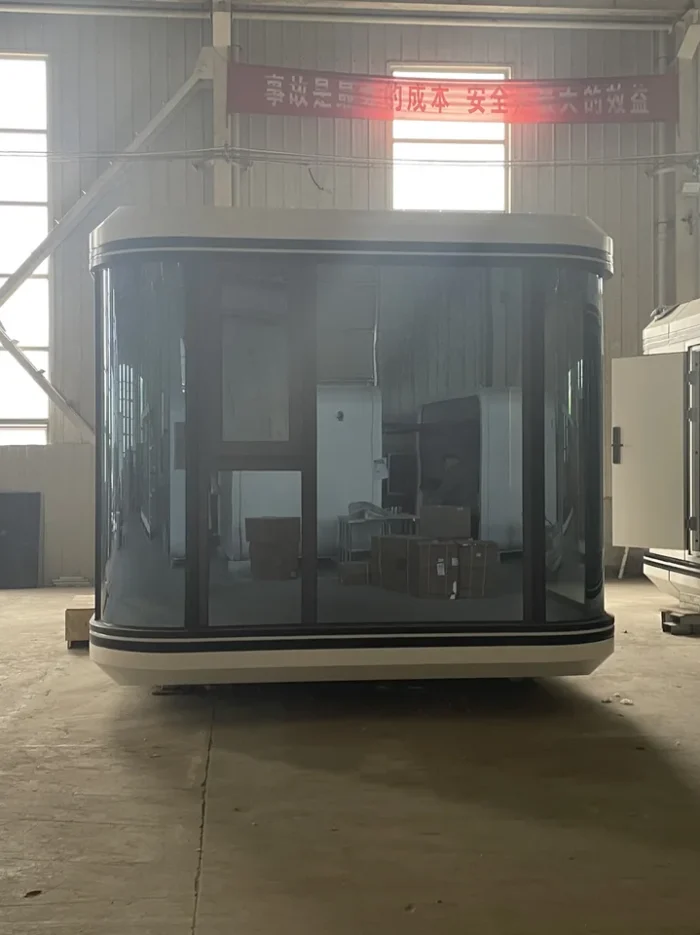

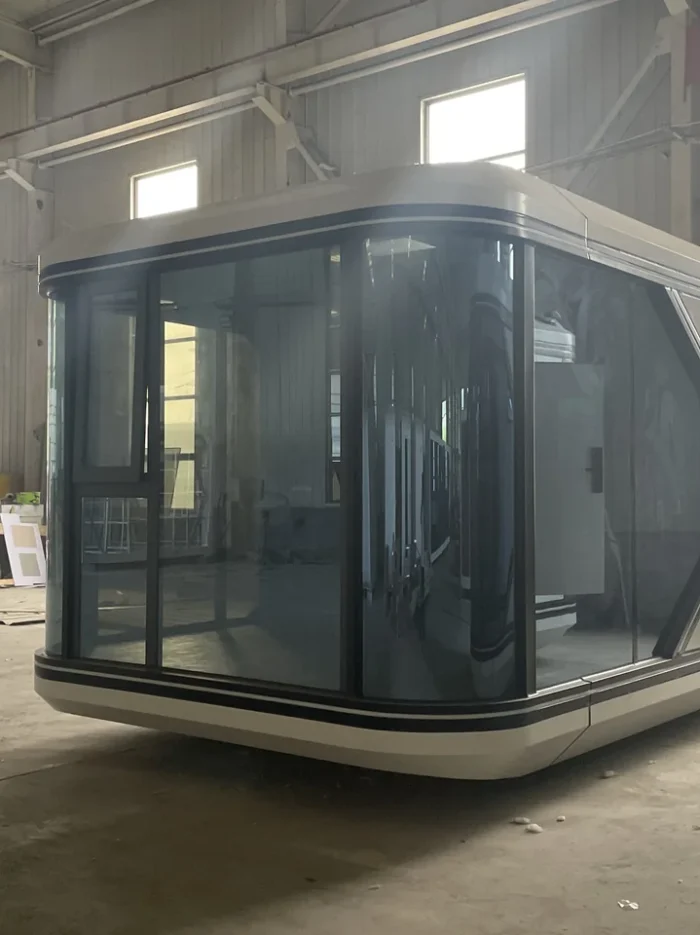

Curved Panoramic Glass Facade
The floor-to-ceiling dark glazing wraps around the front corners, creating a wider field of view and bringing daylight into the compact interior. The curved facade gives the cabin a more refined appearance than a conventional rectangular portable building.

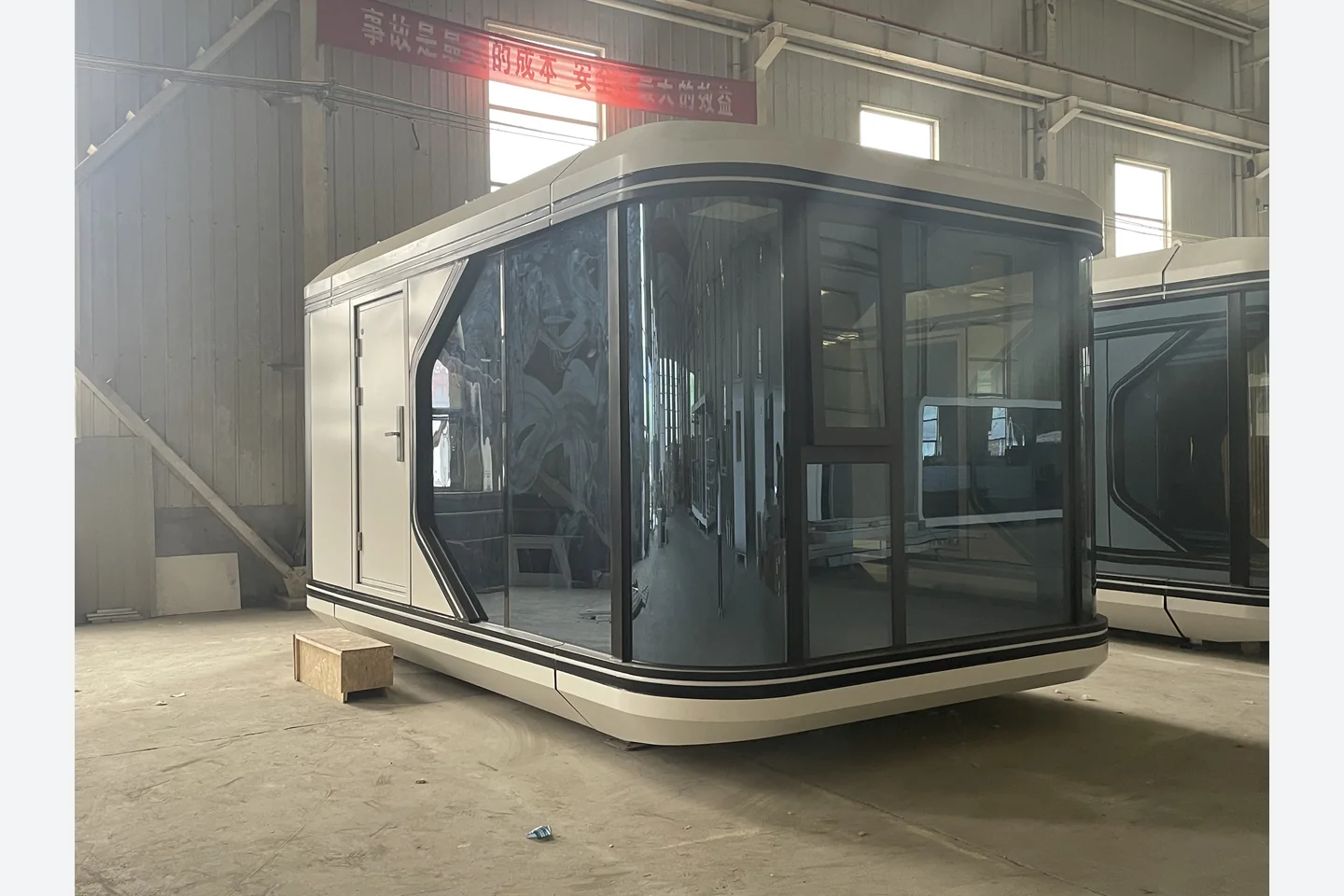

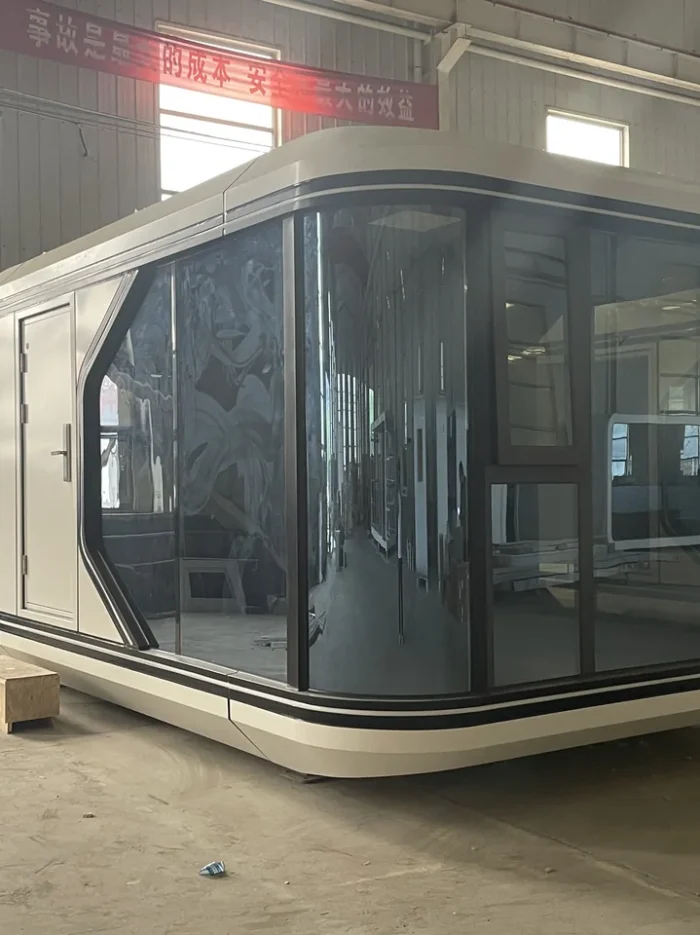

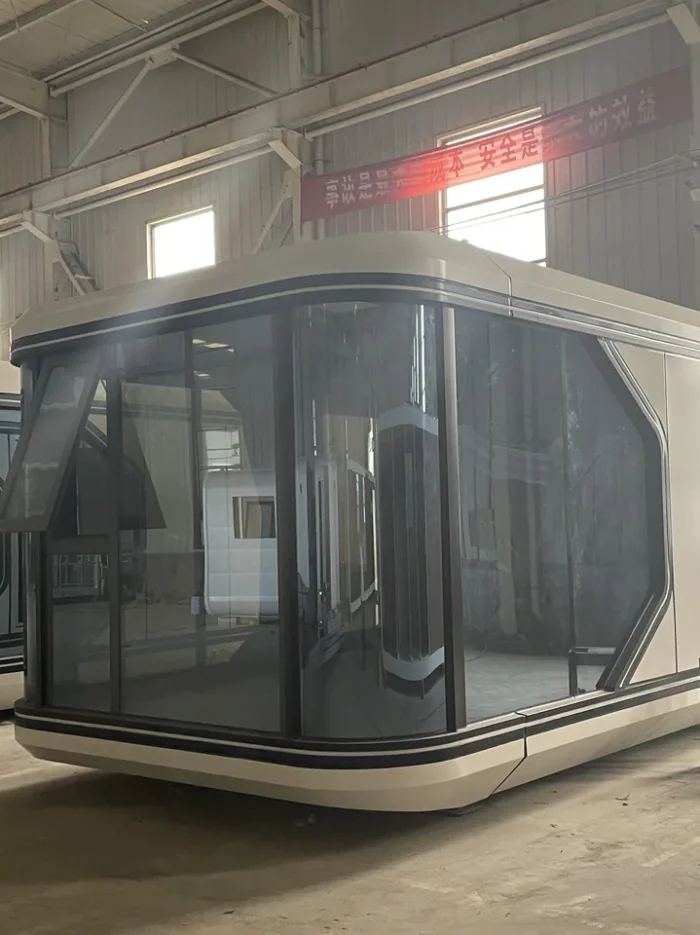

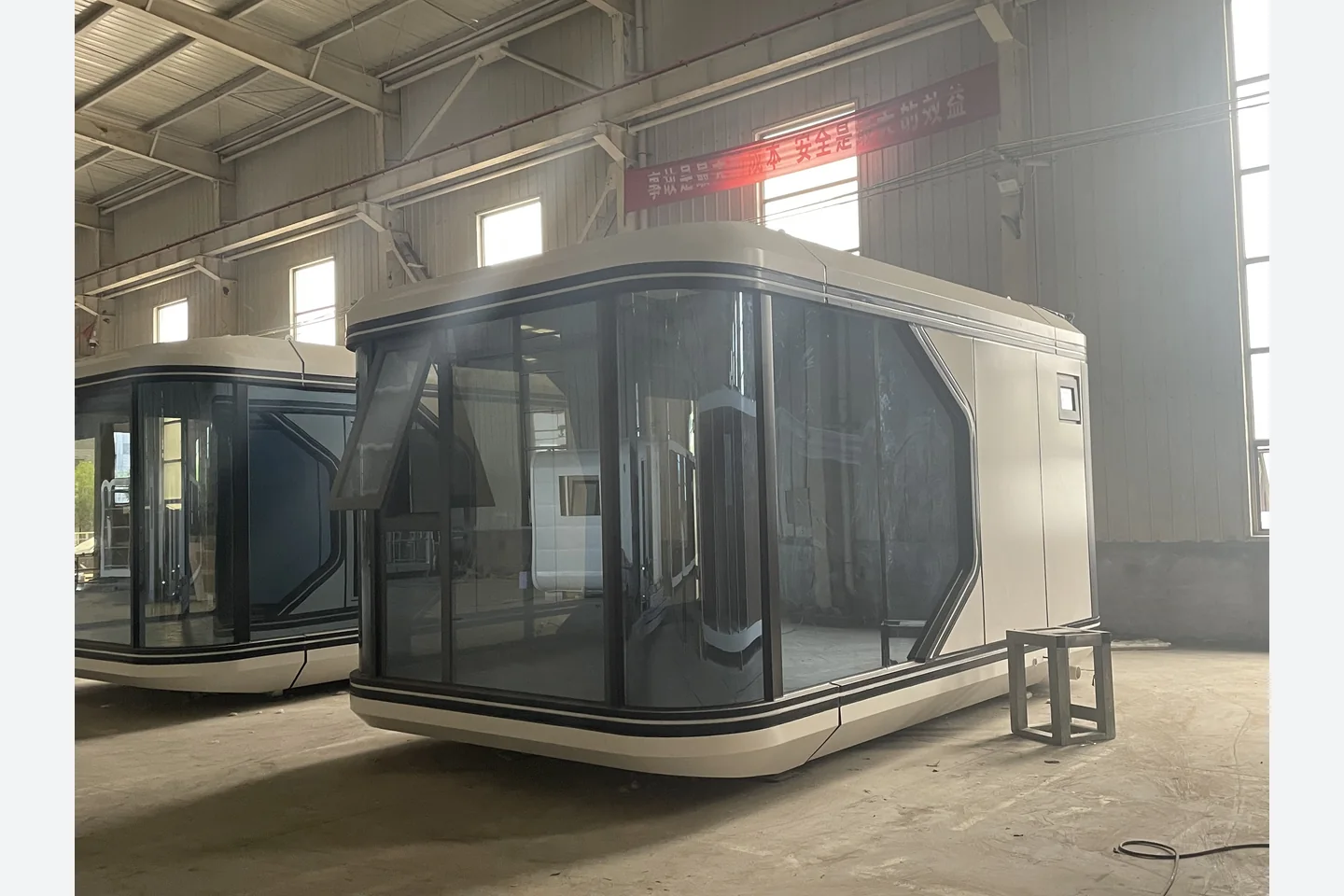

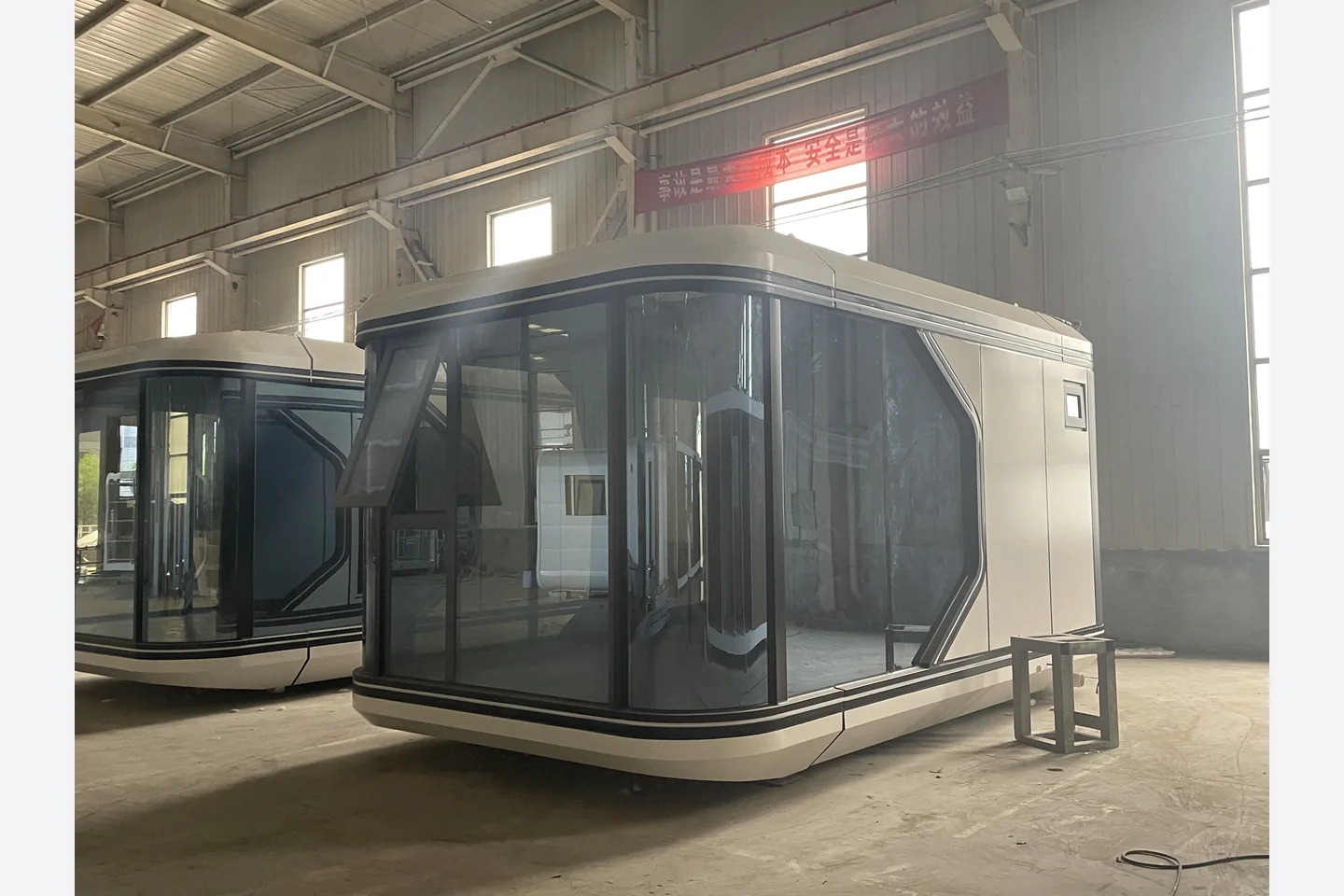

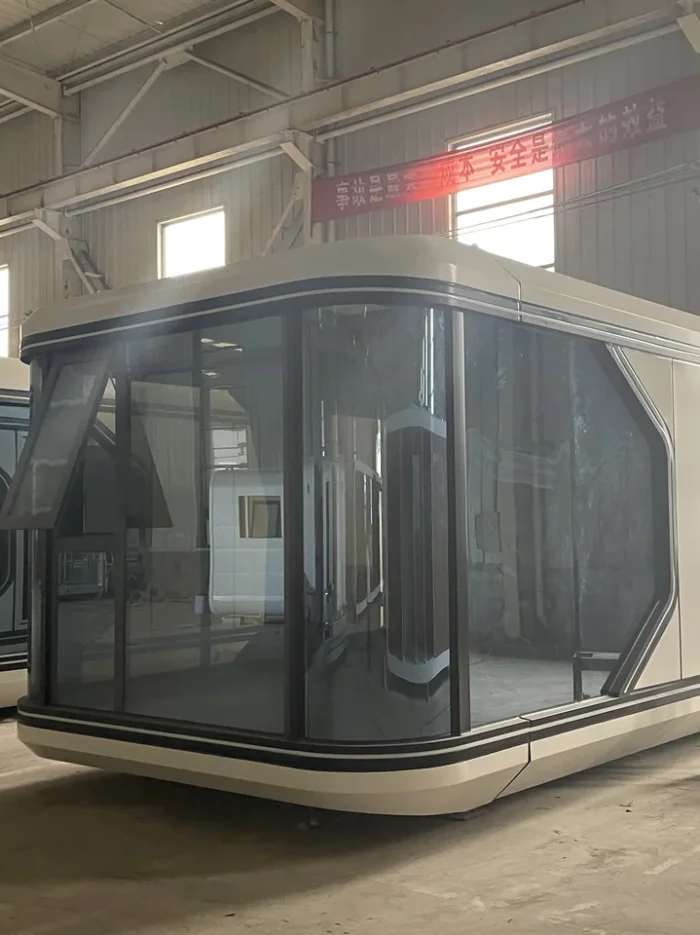

Modern White and Black Exterior
A smooth white body and black graphic trim create a clean, high-contrast finish suited to hospitality and commercial projects. The secure side entrance preserves the uninterrupted front glass area while providing practical access.
Standard Construction Specification
| Main frame | Q235 steel; galvanized square tubes 100 x 100 x 2.5 mm, 80 x 160 x 2.5 mm and 50 x 100 x 1.5 mm |
|---|---|
| Wall structure | 40 x 60 x 1.2 mm and 30 x 50 x 1.2 mm square tubes with diagonal bracing at corner columns |
| Window / roof reinforcement | 40 x 80 x 1.5 mm window reinforcement; 50 x 100 x 1.5 mm roof reinforcement |
| Base and curved frame | Base transverse spacing no more than 400 mm; semicircular curved elbow 100 x 100 x 2.5 mm |
| Floor system | 18 mm high-density cement pressure board plus 12 mm composite wood flooring and baseboard |
| Exterior / interior walls | 18 mm metal carved exterior panel; 8 mm stone-plastic interior panel with adhesive and corner trim |
| Roof | 0.8 mm corrugated steel outer roof, fully welded and sealed; 8 mm stone-plastic inner roof with timber leveling |
| Insulation | 50 mm foil-faced rock wool roll/felt, R 3.2 |
| Doors and windows | Thermal-break aluminum door and window systems; opening style customizable |
| Glass | 5 + 12 + 5 insulated tempered glass |
| Electrical | Leakage and circuit-breaker protection, 6 mm² main wiring, 16A outlets, sockets, switches and LED lighting |

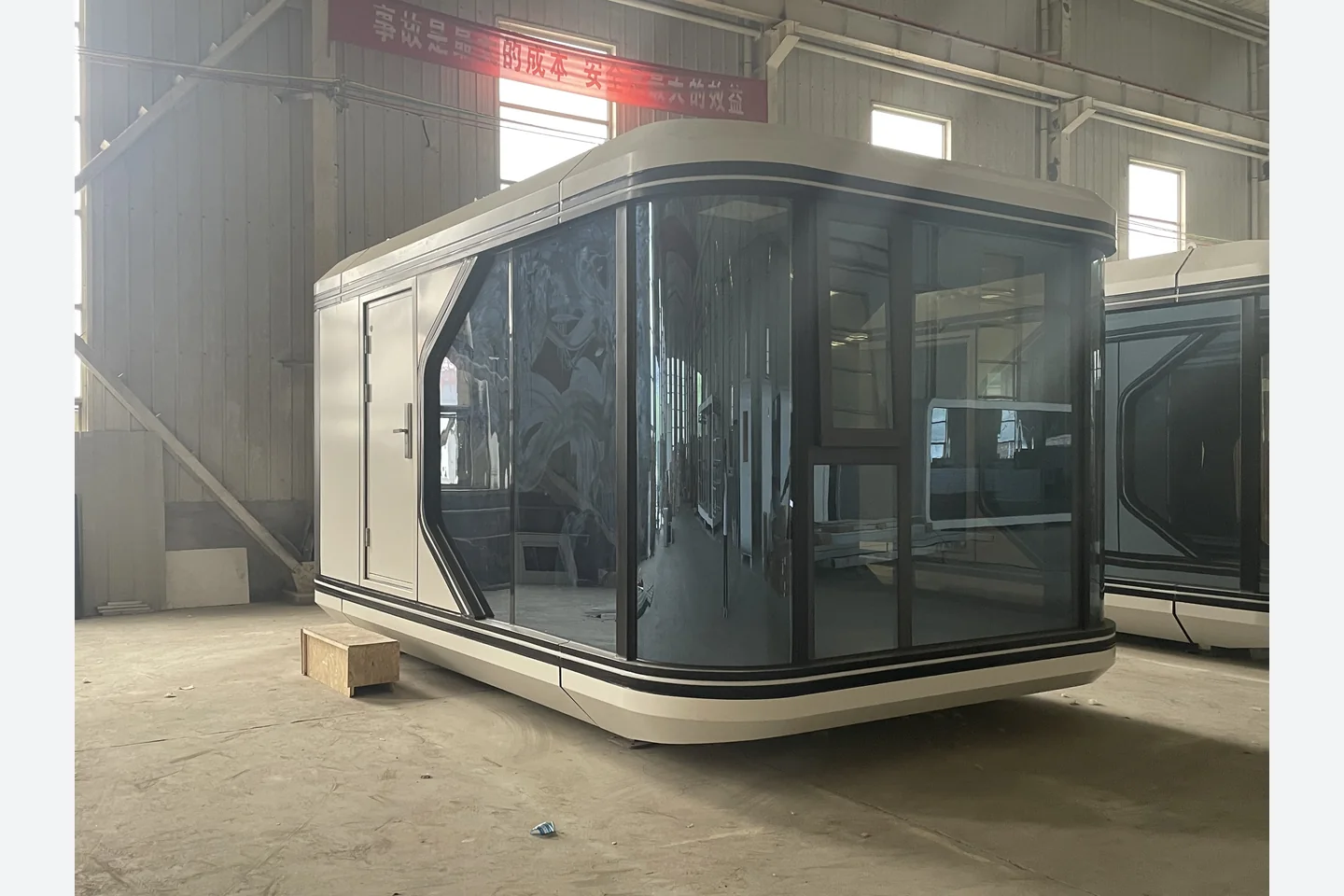

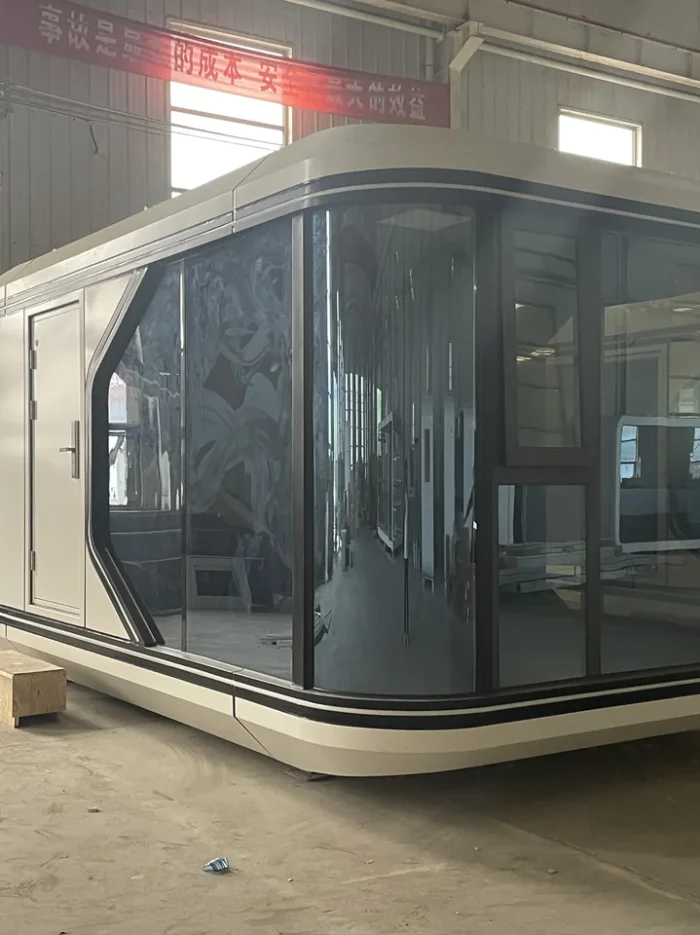

Factory-Built Modular Delivery
The cabin is manufactured and inspected in the factory to reduce on-site work. Final foundation, lifting points, utility connections and transport arrangements are confirmed according to the destination, local requirements and ordered configuration.
Customization Options
- Bedroom, bathroom, kitchenette, office or retail layout
- Exterior color and decorative trim
- Glass, entrance door and ventilation-window arrangement
- Floor, ceiling and interior wall finishes
- Sanitary fixtures, cabinetry, lighting, HVAC openings and furniture
- Voltage, sockets and plumbing for destination standards
Frequently Asked Questions
Is this made from a shipping container?
No. It is a purpose-built steel modular cabin with a rounded insulated shell and architectural glazing.
Can a bathroom and kitchenette be installed?
Yes. Plumbing, sanitary fixtures, cabinets and electrical points can be prepared according to the approved floor plan.
Can the exterior colors be changed?
Yes. Exterior colors, trim, glass arrangement and interior finishes can be customized before production.
What information is required for a quotation?
Please provide quantity, destination port, intended use, preferred layout, electrical standard and required interior package.
